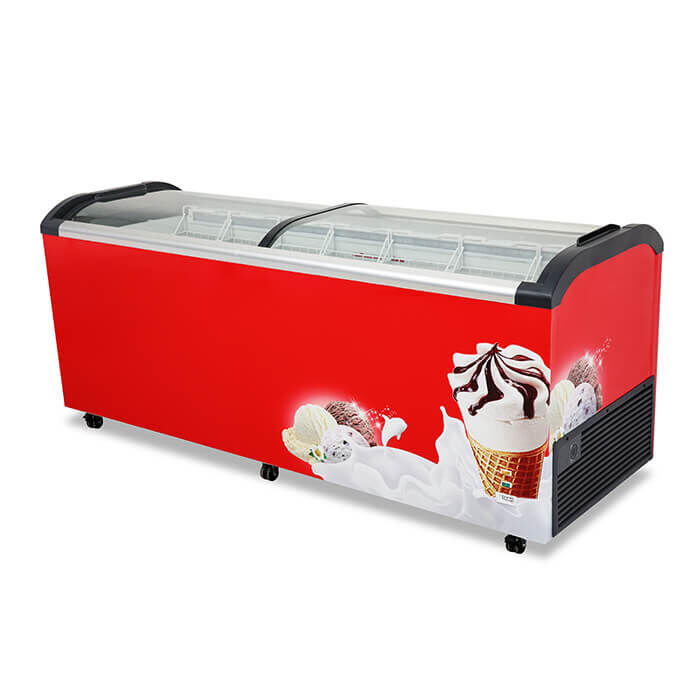

Double Curved

Features

• High COP compressor & Non-CFC refrigerant;

• Static cooling system;

• Mechanical temperature control;

• Free from maintenance ventilated motor fan for condenser&compressor;

• 2 curved tempered & low emissivity sliding glass lids;

• Standard one row interior LED illumination;

• White precoated galvanized steel exterior liner;

• White precoated aluminum interior liner;

• Integrated ABS+ aluminum alloy cabinet frame;

• Wire baskets;

• 4 swivel casters, front 2 with brake;

• Cabinet stickers for advertising;

• Two rows interior LED illumination optional;

• LED illuminated body canopy optional;

• Copper tube evaporator optional;

• With CE/CB certification.


Parameters
ModelSDQ-300SDQ-400SDQ-500SDQ-600SDQ-700
Gross volume (L)273355445545645
Net volume (L)203282353405530
TDA (Total display area) (㎡)0.460.60.730.861
Temperature (℃)≤-18℃≤-18℃≤-18℃≤-18℃≤-18℃
Basket quantity34567
Dimensions (WxDxH)1000x675x8501250x675x8501500x675x8501750x675x8502000x675x850
20'GP Load3024201816
40'HC Load9880665650
